Boolean Z3 oracle

What it is

Boolean Z3 is an independent oracle for the canonical Cubic Monotone 1-in-3 SAT formula. It decides the source model directly and returns an assignment when the result is SAT.

Why it exists

The oracle supplies a decision path that does not depend on the Yang–Zhang builder, Wang region, native solver, or renderer. Agreement across that boundary is stronger evidence than asking one implementation to check itself.

Inputs and outputs

Input is the immutable canonical formula. Output preserves SAT, UNSAT, or UNKNOWN and, for SAT, a Boolean assignment copied from the model. A closed z3-encoding-summary-v1 document records source identity, project-owned assertion order, counters, status, and optional assignment.

Mechanism

The adapter creates one Boolean variable per source variable and adds exactly one constraint for each three-variable clause in source order. Its fixed Z3 configuration uses one thread and a fixed random seed.

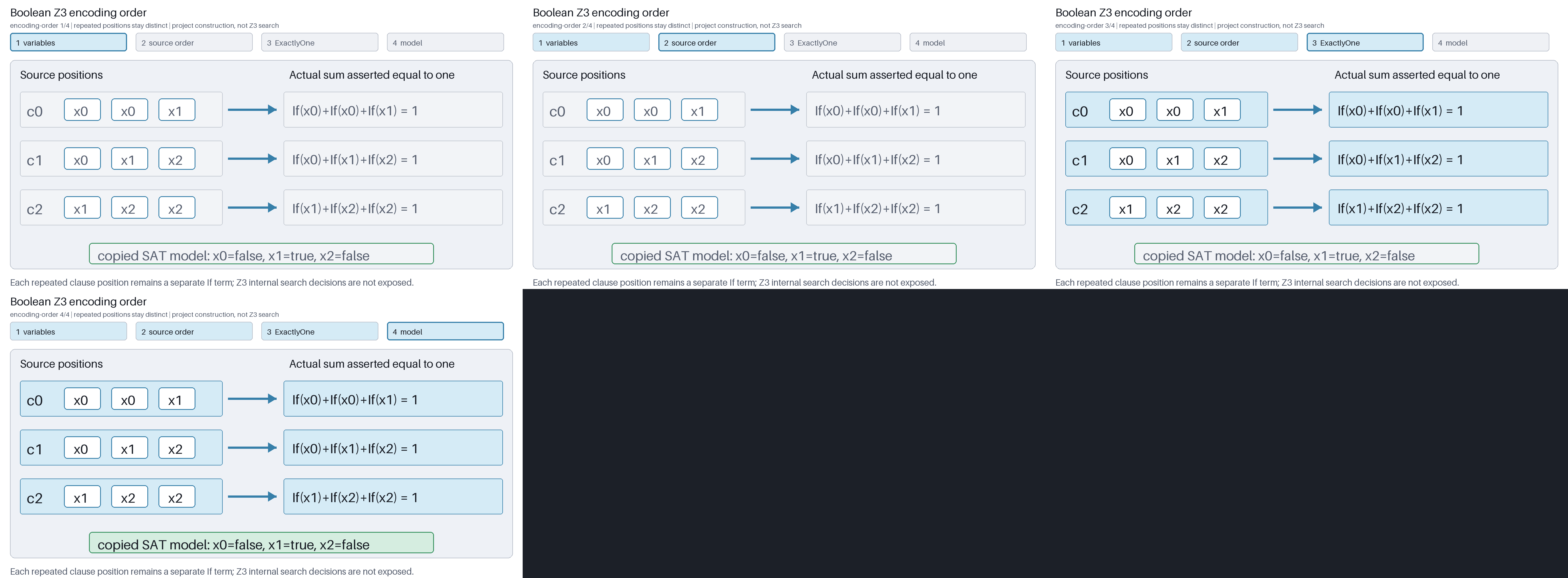

Primary animation

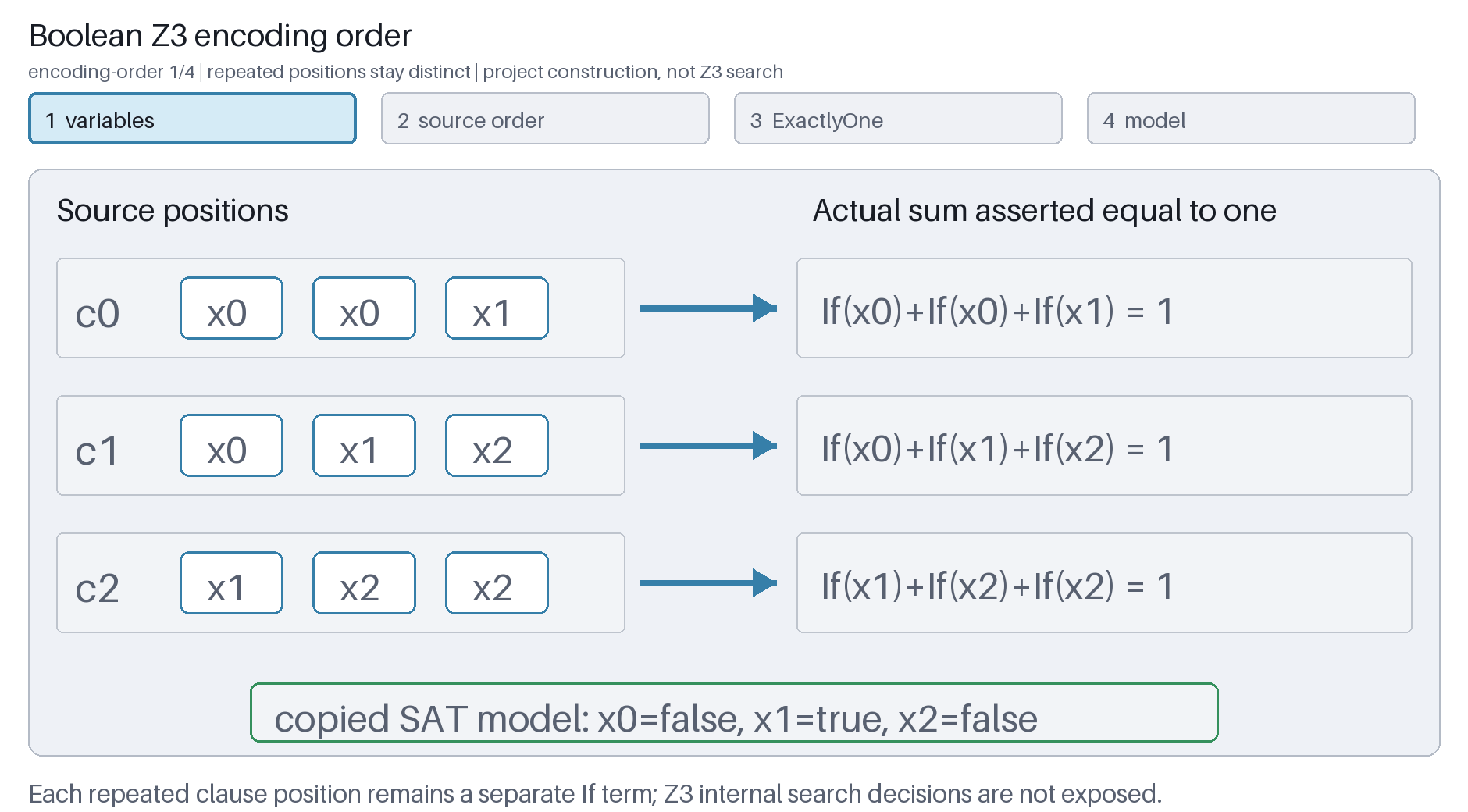

boolean_z3 shows only project-owned encoding order and the returned result.

Position in the pipeline

This branch starts at the source formula and meets the Wang decision paths only at the agreement boundary. It is an independent cross-check, not a predecessor that supplies domains or hints to the native solvers.

Observed example

For pipeline_sat.cm13, Boolean Z3 returns SAT and the independent assignment checker accepts the copied assignment. The asset is bound to the same formula hash shown on the worked example.

Trust boundary

The summary establishes which constraints the project asked Z3 to construct and what result was copied back. It does not expose or stabilize Z3’s internal branching, propagation, proof, or debug trace.

Artifacts and references

The implementation is in python/oracles/boolean_solver.py; encoding summaries are defined by schemas/z3-encoding-summary-v1.schema.json. See the comparison protocol and verification component.
